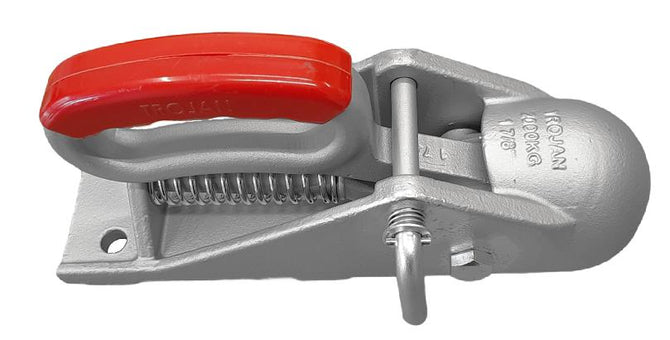

Trojan Lever Non-Braked Coupling TC30 17/8"
$72.45
incl. GST
: 14 in stock
: R93965
New Zealand's most popular trailer coupling, fitted as original equipment by major trailer manufacturers. This Trojan TC30 lever coupling is cast in steel, simple to operate and suits 1-7/8" towballs on unbraked trailers up to 2,000kg.
Specifications
| Brand | Trojan |
|---|---|
| Part number | R93965 (Trojan T993965) |
| Type | Lever coupling, non-braked |
| Towball size | 1-7/8" only |
| Maximum capacity | 2,000kg |
| Mounting style | TC30 bolt-on |
| Construction | Cast steel, electro zinc plated |
Measurements
| Mounting holes | 4 x 10mm |
|---|---|
| Bolt pattern | 90mm x 36mm, measured across bolt centres |
Compatibility
- Towball: 1-7/8" only. For a 50mm towball, use the 50mm version, or a Trojan V2 Duofit coupling that fits both sizes.
- Brakes: unbraked trailers. For braked trailers, see braked couplings.
- Weight: up to 2,000kg.
- Drawbar: suits drawbars drilled to the TC30 90 x 36mm pattern.
What's included
- Trojan TC30 lever coupling (1-7/8")
Mounting bolts are not listed as included. Trojan sells a matching bolt kit, linked below.
Fitting notes
- Mount with four 10mm high-tensile bolts, as Trojan recommends.
- Tighten to Trojan's recommended torque for the bolt grade:
| Bolt size | Grade 8.8 | Grade 10.9 |
|---|---|---|
| M10 | 60Nm (45ft/lb) | 80Nm (60ft/lb) |
