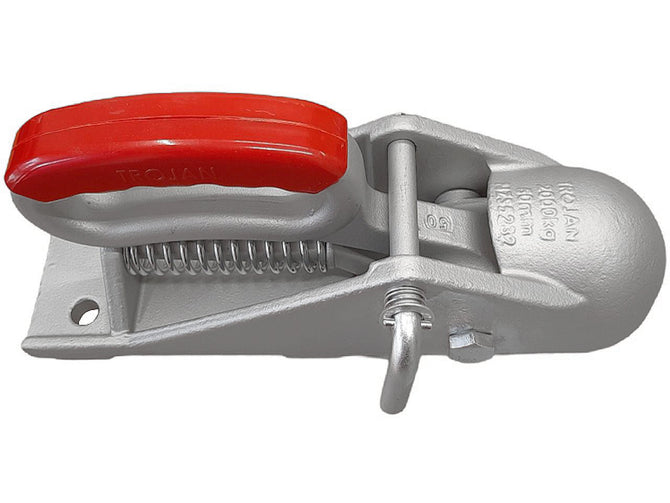

Trojan Lever Non-Braked Coupling TC30 50MM
$74.41
incl. GST
: 7 in stock
: R93963
New Zealand's most popular trailer coupling, fitted as original equipment by major trailer manufacturers. This Trojan TC30 lever coupling is cast in steel, simple to operate and suits 50mm towballs on unbraked trailers up to 2,000kg.
Specifications
| Brand | Trojan |
|---|---|
| Part number | R93963 (Trojan T993963) |
| Type | Lever coupling, non-braked |
| Towball size | 50mm only |
| Maximum capacity | 2,000kg |
| Mounting style | TC30 bolt-on |
| Construction | Cast steel, electro zinc plated |
| Standard | Complies with NZS 5232:1993 |
Measurements
| Mounting holes | 4 x 10mm |
|---|---|
| Bolt pattern | 90mm x 36mm, measured across bolt centres |
Compatibility
- Towball: 50mm only. For a 1-7/8" towball, use the 1-7/8" version, or a Trojan V2 Duofit coupling that fits both sizes.
- Brakes: unbraked trailers. For braked trailers, see braked couplings.
- Weight: up to 2,000kg.
- Drawbar: suits drawbars drilled to the TC30 90 x 36mm pattern.
What's included
- Trojan TC30 lever coupling (50mm)
Mounting bolts are not listed as included. Trojan sells a matching bolt kit, linked below.
Fitting notes
- Mount with four 10mm high-tensile bolts, as Trojan recommends.
- Tighten to Trojan's recommended torque for the bolt grade:
| Bolt size | Grade 8.8 | Grade 10.9 |
|---|---|---|
| M10 | 60Nm (45ft/lb) | 80Nm (60ft/lb) |
