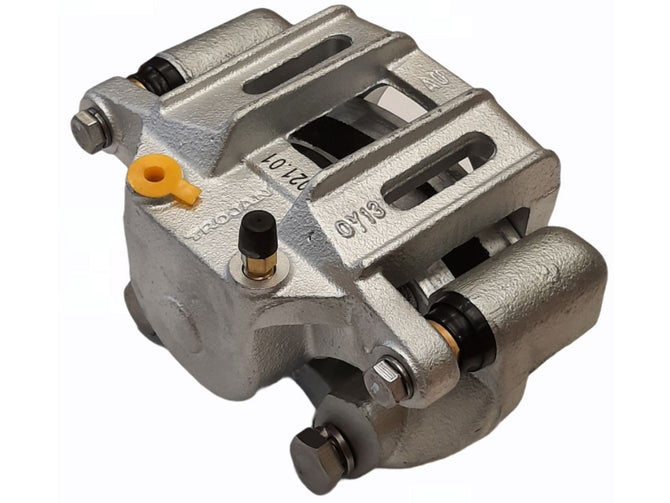

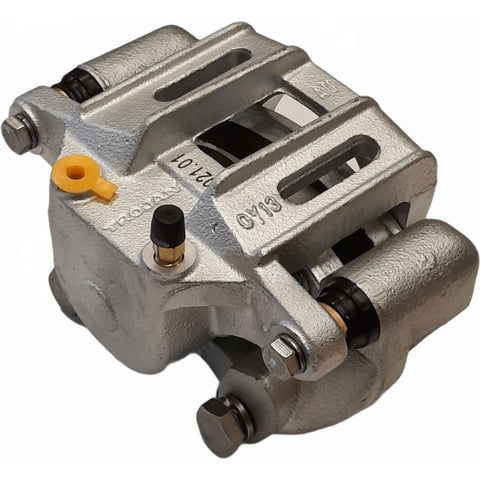

Trojan Mk5/7 Hydraulic Calipers (Pair)
: 7 in stock
: PT1098
Trojan's current-model hydraulic disc brake caliper set, sold as a pair. Each set includes two calipers, brake pads and mounting hardware. The brake pads are asbestos-free.
The caliper bodies are cast in SG iron for corrosion protection in normal use. They're fitted with phenolic pistons, a high-strength material that won't rust. The slide pins and bleed screws are brass and the other fittings are stainless steel.
| Spec | Value |
|---|---|
| Sold as | Pair (2 calipers, pads & mounting hardware) |
| Caliper body | SG cast iron |
| Piston | Phenolic (non-rusting) |
| Fittings | Brass slide pins & bleed screws, other fittings stainless steel |
| Stopping capacity | 1500kg per pair with 225mm rotors 2000kg per pair with 275mm rotors |
| Brake pads | Asbestos-free |
| Part number | PT1098 (TPT1098) |
Not for marine use: Trojan doesn't warrant cast iron calipers for boat trailers. For marine use, choose the Trojan Mk5/7 Stainless Steel Hydraulic Calipers (PT1298).
Not sure this fits? Check before you order
Compare your existing part against the specifications, or send us photos and we'll help identify it.
Helpful to include: photos, measurements and any part numbers stamped on your old part.Trojan Hydraulic Disc Brake Caliper — Parts Diagram
These calipers are standard Cast Iron versions and are available as complete units. Where used for replacing earlier MK2 Calipers, the only difference is the Anchor Plate. Tap a number to find the part.
Tap a number on the diagram to see part details and buy links.
