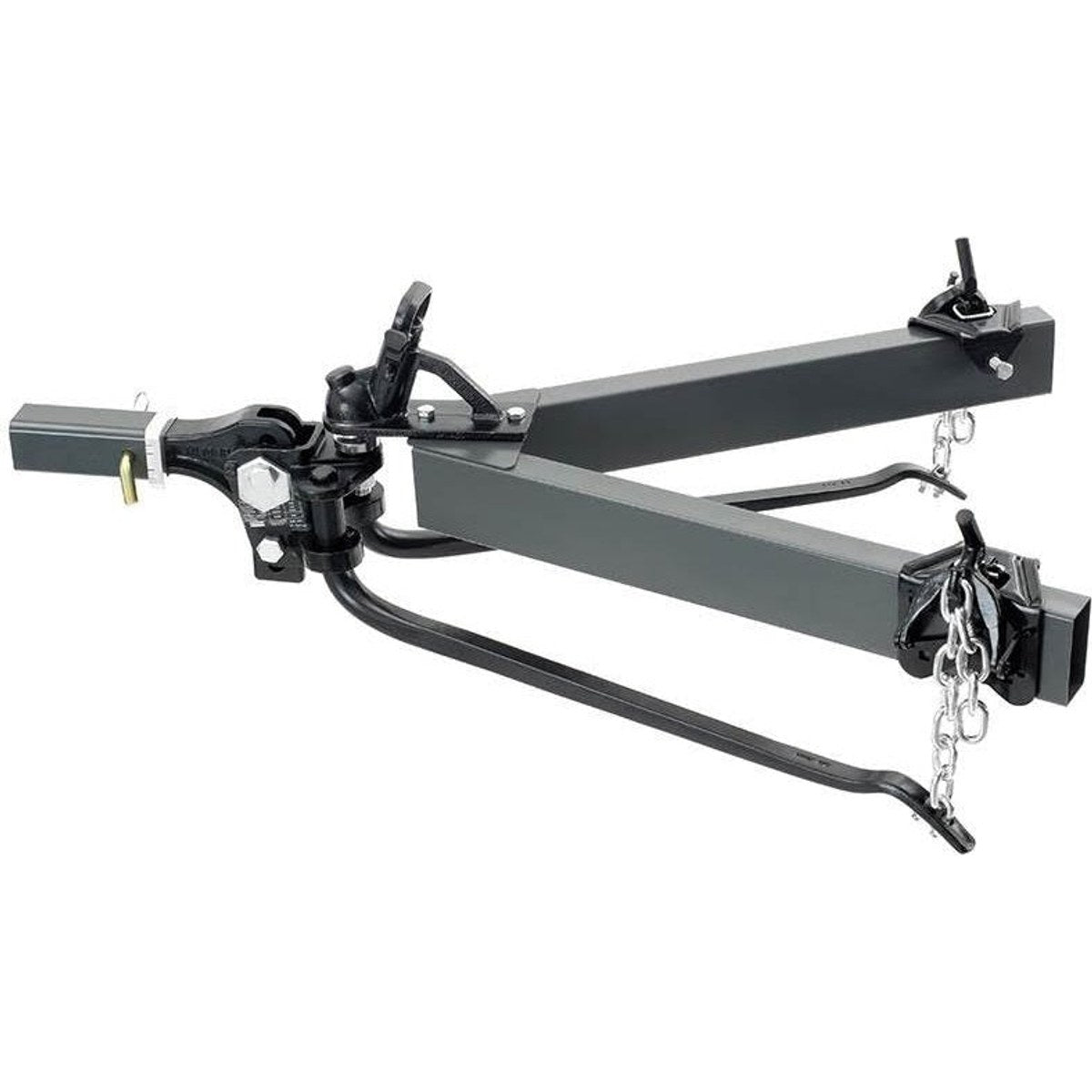

Hayman Reese Weight Distribution System - 275-365kg (30" Round Bar)

Hayman Reese Weight Distribution System - 275-365kg

$1,057.42 incl. GST

Availability: Available to Order

SKU: 78003

The 800lb kit relies on heavier spring bars to handle heavier ball weights, with a 30" spring bar length. As the name implies, the 800lb kit is designed to work...

Add to wishlist

Details
Reviews

The 800lb kit relies on heavier spring bars to handle heavier ball weights, with a 30" spring bar length. As the name implies, the 800lb kit is designed to work with trailers that have a ball weight between 275kg and 365kg. Easy-to-use adjusting washers for head adjustment One piece cast head Distributes ball weight evenly throughout the vehicle and trailer Restores natural balance of the tow vehicle Restores correct suspension and steering geometry Has a 22mm / 7/8" towball shank size Each 78003 Fitting Instructions (PDF)

Choose your setup

Add the wiring loom, breakaway kit, or the complete EB2 + EBR system — priced and ready to add to cart.

Hayman Reese Weight Distribution System - 275-365kg

Choose your setup

$1,057.42

Hayman Reese Weight Distribution Syst...

$1,057.42

Why choose this

Restore Your Vehicle's Natural Balance

Hayman Reese weight distribution systems even out ball weight across all four wheels, improving safety, handling, control and comfort when towing.

Eliminates Trailer Sway

Distributes ball weight evenly through the vehicle's chassis to all four wheels, restoring your vehicle's natural balance and reducing sway.

Restores Steering & Braking

Corrects the suspension and steering geometry changes caused by trailer ball weight, restoring the braking and steering responsiveness you're used to.

5 Capacities to Match Your Rig

From 80kg to 545kg ball weight, there's a Hayman Reese kit sized to your caravan or trailer — see the guide below to find yours.

Pairs With Sway Control

Add a Friction Sway Controller or Dual Cam HP Sway Controller for extra confidence in crosswinds and passing traffic.

NZ-Wide Delivery

Genuine Hayman Reese

Backed by Autotrailer Support

Compatibility & installation

Complete the job

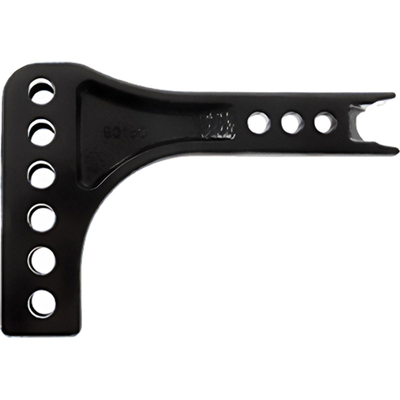

Hayman Reese Cast Shank - Standard

$234.60

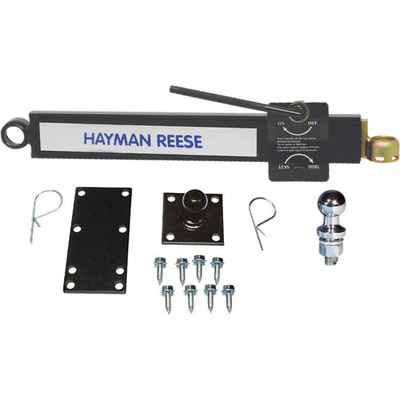

Hayman Reese Friction Sway Controller - Standard

$296.70

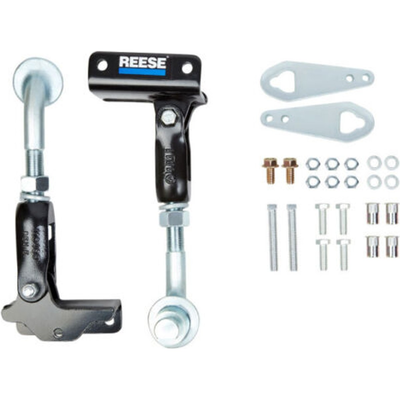

Hayman Reese Towing Aid - Dual Cam Sway Controller

$501.40

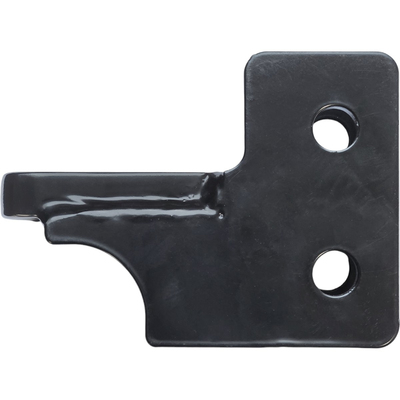

Hayman Reese Adjustable Towball Mount Tongue - 3500kg

$218.50

Trojan Tow Ball 50mm X 7/8" Shank

$25.30

Trojan Tow Ball 1-7/8 inch X 7/8 inch Shank

Trojan Tow Ball 1-7/8" X 7/8" Shank

$21.85

Frequently asked questions

Take the 2-Minute Quiz

It's based on your caravan or trailer's fully-loaded ball weight: 80–135kg needs the Intermediate kit, 135–275kg needs the 600lb kit, 275–365kg needs this 800lb kit, and 365–545kg needs the Super Heavy Duty kit. Weigh your trailer at a weighbridge or check your compliance plate if you're not sure, or use Hayman Reese's free online quiz to confirm.

Both cover the same 275–365kg ball weight range. The 28" bar suits trailers with a shorter drawbar; the 30" bar is the standard length. Get in touch if you're not sure which fits your trailer and we'll help you check.

It's optional but recommended, especially for larger caravans. A Friction Sway Controller suits ball weights up to 200kg and is easy to remove for reversing. A Dual Cam HP Sway Controller suits ball weights over 200kg and works proactively to prevent sway rather than just resisting it once it's started.

Only if there's a significant height difference between your towball and your trailer coupling. Hayman Reese cast shanks are available in 30mm, 95mm and 160mm drop, or a standard (no-drop) shank if your towball and coupling already line up.

Most customers fit their own weight distribution kit with basic hand tools — full fitting instructions are included below. If you'd rather have it done for you, get in touch and we can help.
