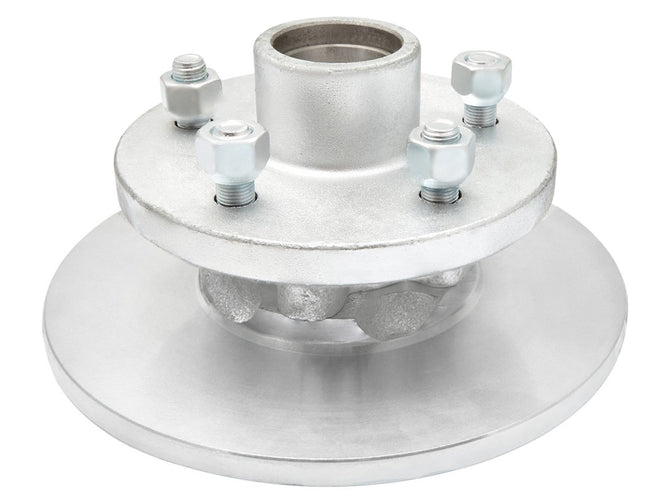

Trojan 2 Piece S/S Rotor & Hub Kit 1500kg 225 5X4-1/2 X1/2
$1,051.10
incl. GST
: 1 in stock
: 036335
Two-piece hub & rotor add-on to suit Duratorque and beam axles (kit excludes stub axles).
Rotor diameter 225mm x 11mm thick, cast iron hub with a stainless rotor — suited to marine applications. Kit includes bearings, seals, dust caps, slotted castle nuts & split pins. Calipers are NOT included.
| Specification | Measurement |
|---|---|
| Rotor diameter | 225mm x 11mm thick (stainless) |
| Hub diameter | 59mm |
| Stub diameter | 45mm |
| Bolt pattern (PCD) | 5 stud, 114.3mm (4-1/2") |
| Stud spacing | 67.183mm (2.645") |
| Bearing kit part number | TPT1184 |
| Inner bearing (cup / cone) | LM67010 / LM67048 (59mm OD / 32mm ID) |
| Outer bearing (cup / cone) | LM11910 / LM11949 (45mm OD / 19mm ID) |
| Seal kit part number | TPT10131 (59mm OD / 37mm ID) |
| Axle load rating | 1500kg per pair |
| Part number | T036335 |
Sold per pair.
