Trojan Hub/Stub Kit - 4x4-1/4"x7/16" - Pair
$279.45
incl. GST
: Available to Order
: 122015

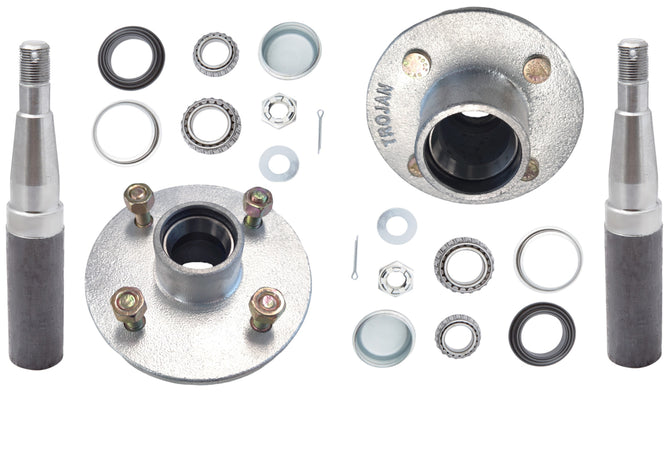

Trojan 1500kg non-braked hub & stub kit, sold as a pair — two complete hub and stub axle assemblies for building or rebuilding a non-braked trailer axle. 4-stud hubs on a 4-1/4" PCD with 7/16" UNF wheel studs. The stub axles are 1045 medium tensile steel to AS1442 and weld into your axle tube.
| Spec | Value |
|---|---|
| Rating | 1500kg (non-braked) |
| Stud pattern | 4 stud on 4-1/4" (108mm) PCD |
| Wheel studs | 7/16" UNF |
| Hub | 155mm flange diameter, 97mm long |
| Stub axle | 218mm long, 38mm diameter at the weld end, 3/4" UNF thread |
| Stub axle material | 1045 medium tensile steel to AS1442 |
| Bearings | Inner LM67048 / LM67010, outer LM11949 / LM11910 |
| Seal | 59mm OD x 37mm ID |
| Sold as | Pair |
| Part number | 122015 (T122015) |
| Kit component | Trojan part number |
|---|---|
| Hub, 4x4-1/4"x7/16" | T600002 |
| Stub axle, non-braked 218x39mm | T995020 |
| Bearing kit, 1500kg | TPT1184 |
| Seal kit, 1500kg | TPT10131 |
| Grease/dust cap, 45.2mm | T994047 |
| Axle nut, washer & split pin kit | TPT1008 |
| Wheel studs & nuts, 7/16" UNF | TPT10055 |
Each component is also available as a replacement spare.
