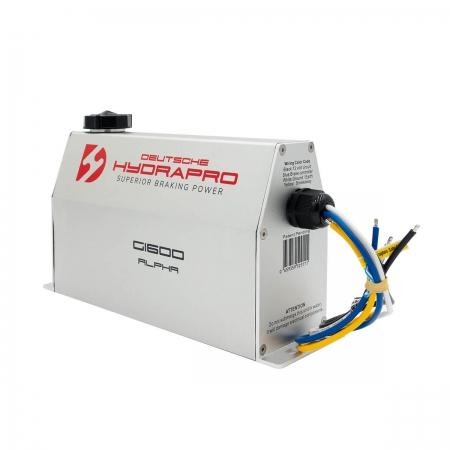

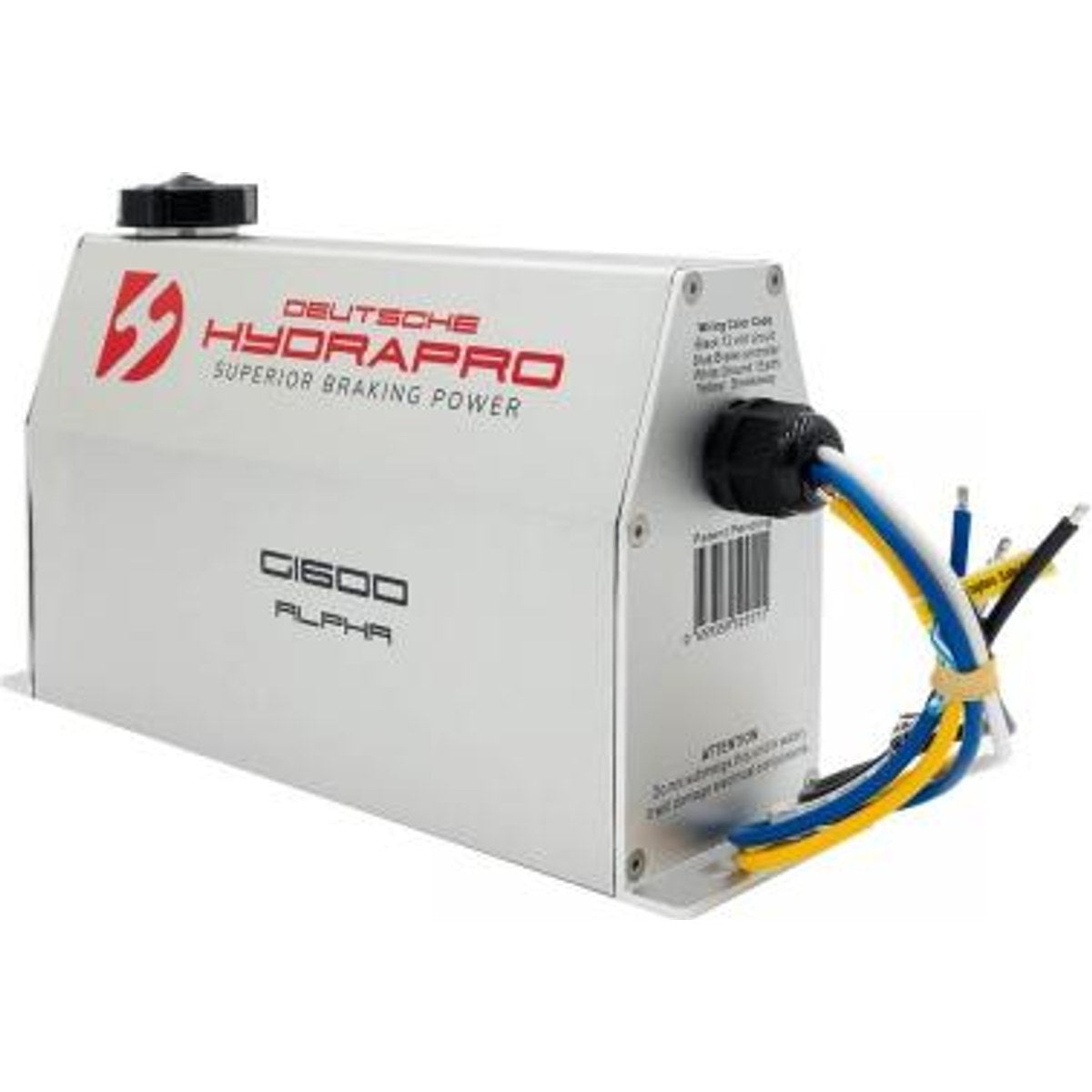

Deutsche Hydrapro Alpha G1600 (1600psi) Brake Actuator

The Alpha G-1600, with its sleek and modern design, was created with high-quality standards to withstand even the harshest conditions. Its compact size allows for easy installation, and brake line fitting with 360 degrees of movement is included to connect your brake line from all mounting positions. In addition, all Deutsche Hydrapro 1600psi brake actuators have a swift response time, reaching 1000psi in 0.184 seconds. Best used with Disc Brakes. Features: This device has an in-built compatibility adapter, so no external compatibility device is necessary. High-powered DC motor and quality pump with minimal moving parts. Weatherproof, anodized alloy case protects components from external elements (such as saltwater, extreme temperatures, and poor road conditions). Anodized, T6-grade extruded alloy housing protects from different environments and has a great aesthetic design. Independently sealed fluid tank. Conformal coating on the circuit board is designed to provide extra protection from moisture. Two-year no-hassle warranty. Specs: DOT Compliant Trailer Mounted Application: Disk brakes for single, tandem, tri, and quad axle trailers Distance between mounting holes: 278mm & 35mm (10.95” & 1.38”) Mounting Hole Diameter 12 x 8 mm (1.2cm x 0.8cm) slot Hydraulic Port Size: 3/16 inverted flare (standard brake line fitting) Dot 4 Brake Fluid Fluid Capacity of 15.7 oz Power: 12V DC (min 30 amp circuit) Max Current Draw at full pressure approximately 18-24 amps. Wire Configuration: Black: 12-volt power Blue: brake controller Yellow: breakaway White: ground Wire Gauge Recommendation A minimum of 10 gauge on black and white A minimum 12 gauge on blue and yellow Dimensions: Length: 255mm (10”) Height: 152mm (6”) Width: 90mm Base / 44mm Top (3.6” Base /1.7” Top) Mounting centres: 275mm L and 40mm W (10.9” and 1.6”)
