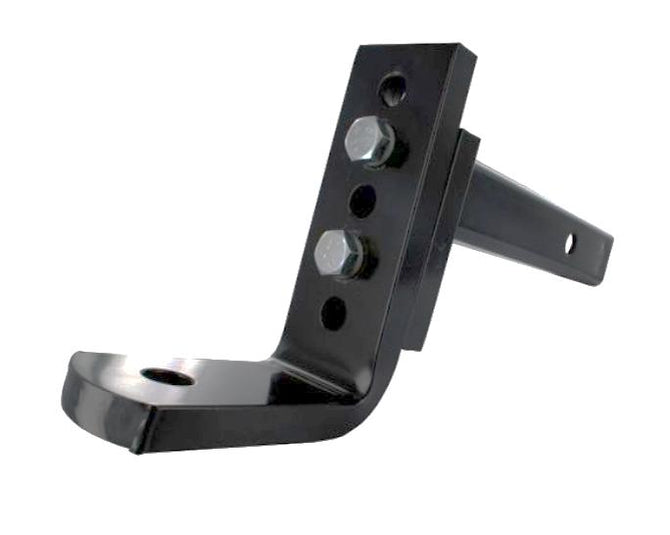

Hayman Reese Trailer Ball Mount - 215x250mm - 2500kg
: 1 in stock
Compare every towball mount by shank, capacity and drop
: 21187
Trailer Ball Mount to suit heavy duty 50mm x 50mm hitch receiver tow bars.
A Pro Series adjustable tow ball mount with a 50mm square shank. The head bolts to a slotted plate, so one mount covers a range of heights instead of committing you to a single fixed drop — and it can be inverted to give rise as well as drop.
Specifications
| Specification | Measurement |
|---|---|
| Rating | 2500kg |
| Drop | Adjustable up to 175mm from pin centre |
| Rise | Adjustable up to 155mm from pin centre |
| Tow ball shank diameter | 22mm (7/8") |
| Shank receiver size | 50mm square |
| Shank length | 250mm |
| Ball to pin length | 300mm |
| Pin to rear length | 83mm |
Ensure the bolts are tight before towing — 189Nm is recommended.
English and European caravan owners — as per the manufacturers' mandatory requirement, you must use the 50mm High Rise Towballs and Locking Plates (European Caravan Kit below) when towing imported European caravans fitted with the AL-KO AKS stabiliser couplings.
Part number 21187
