Towball Mount Finder
Answer up to three questions and we will show you every towball mount we stock that fits. Not sure of your measurements? Send them through and we will confirm the right one.
How to check a mount will fit your vehicle's receiver
Beyond capacity and drop, two measurements decide whether a mount will physically fit and lock into your vehicle's tow bar receiver:
- Pin to front (shank length) — from the centre of the lock pin hole to the front end of the mount's shank (the end you insert into the receiver). This needs to be longer than the same measurement on your vehicle's receiver, or the lock pin won't line up.
- Pin to rear — from the centre of the lock pin hole to the rear of the mount's shank. This needs to be shorter than the same measurement on your vehicle's receiver, or the shank will bottom out before the pin holes align.
Where we have them, both figures are listed in each mount's spec table below.
| Spec | Value |
|---|---|
| Receiver size | Standard NZ tow bars use a 50mm (2") square receiver. Some imported US vehicles use 2.5" or 3" — a step-down reducer is available for 2.5" to 2", ask us if you need one. |
| Lock pin size | 16mm standard |
| Fit is loose? | A few millimetres of play between mount and receiver is normal — anti-rattle shims sort this out if it bothers you. |
Still not sure? Send us your receiver's pin-to-front and pin-to-rear measurements and we'll confirm the right mount.
Find the right towball mount
Towball Mount 3500kg 98MM DROP 157MM (Ranger)
- Capacity3500 kg
- Drop98 mm
- Ball to pin157 mm
- Shank7/8"
- Pin to front114 mm
- Pin to rear57 mm
$112.70
In stock
Towball Mount 2500kg 98MM DROP 332MM (PRO7010)
- Capacity2500 kg
- Drop98 mm
- Ball to pin332 mm
- Shank7/8"
- Pin to front305 mm
- Pin to rear83 mm
$112.70
In stock

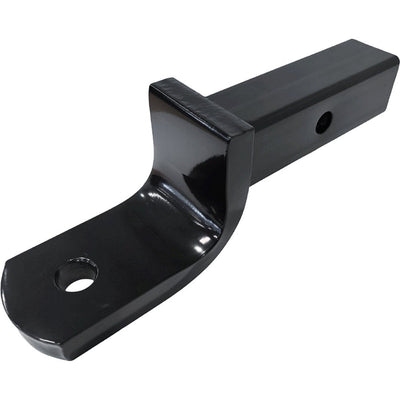

Towball Mount 3500kg 98MM DROP 193MM (PRO7012)
- Capacity3500 kg
- Drop98 mm
- Ball to pin193 mm
- Shank7/8"
- Pin to front166 mm
- Pin to rear83 mm
$112.70
In stock
Towball Mount 3500kg 98MM DROP 227MM (PRO7011)
- Capacity3500 kg
- Drop98 mm
- Ball to pin227 mm
- Shank7/8"
- Pin to front200 mm
- Pin to rear83 mm
$112.70
In stock
Towball Mount 3500kg 86MM DROP 305MM (Solid Shank)
- Capacity3500 kg
- Drop86 mm
- Ball to pin305 mm
- Shank7/8"
$285.20
In stock

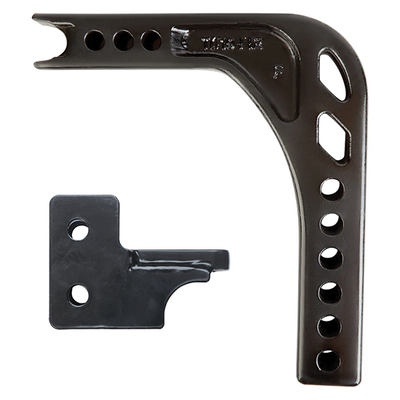

Hayman Reese Towball Mount - 3500kg - Adjustable 190-285mm Drop - 160mm Drop Shank
Adjustable
- Capacity3500 kg
- Dropup to 286 mm
- Shank1"
- Pin to front155 mm
$509.45
To order

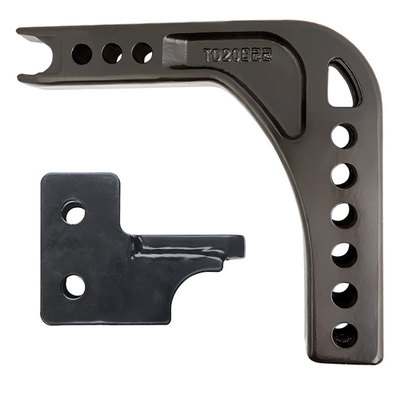

Hayman Reese Towball Mount - 3500kg - Adjustable 125-220mm Drop - 95mm Drop Shank
Adjustable
- Capacity3500 kg
- Dropup to 221 mm
- Shank1"
- Pin to front155 mm
$509.45
To order

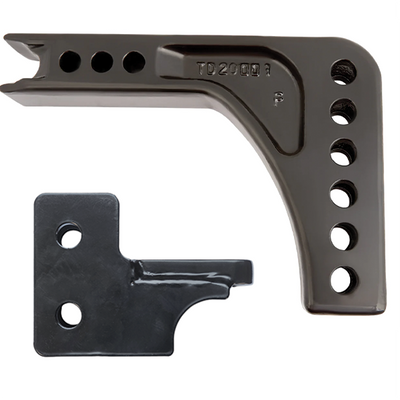

Hayman Reese Towball Mount - 3500kg - Adjustable 60-156mm Drop - 30mm Offset Shank
Adjustable
- Capacity3500 kg
- Dropup to 156 mm
- Shank1"
- Pin to front155 mm
$453.10
To order

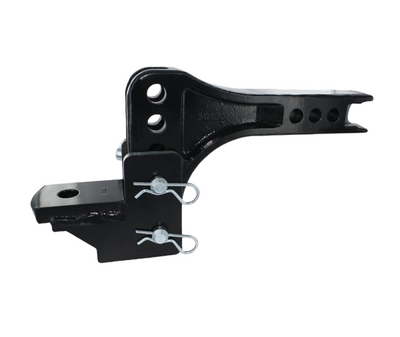

Pro Towball Mount Adjustable Heavy Duty
Adjustable
- Capacity3500 kg
- Dropup to 90 mm
- Shank7/8"
$603.75
In stock
Pro Towball Mount Adjustable Standard QR
Adjustable
- Capacity2750 kg
- Dropup to 206 mm
- Ball to pin325 mm
- Shank7/8"
- Pin to front70 mm
- Pin to rear70 mm
$402.50
To order
Trailer Ball Mount - Adjustable Head - 304mm Long - 3500kg
Adjustable
- Capacity3500 kg
- Dropup to 114 mm
- Shank1"
- Pin to front105 mm
$400.20
To order

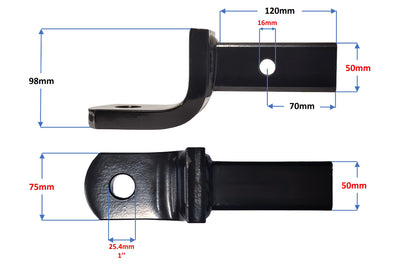

Hayman Reese Towball Mount 65111 - 3500kg - 98mm Drop - 120mm Shank Length - 1" TB Shank
- Capacity3500 kg
- Drop98 mm
- Shank1"
- Pin to front120 mm
- Pin to rear70 mm
$143.75
In stock

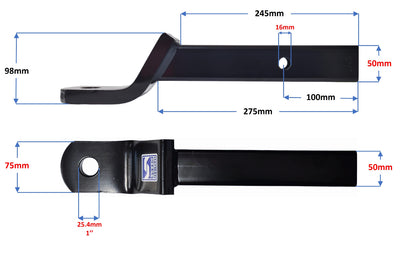

Hayman Reese Towball Mount 65110 - 3500kg - 98mm Drop - 245mm Shank Length - 1" TB Shank
- Capacity3500 kg
- Drop98 mm
- Shank1"
- Pin to front245 mm
- Pin to rear100 mm
$151.80
To order

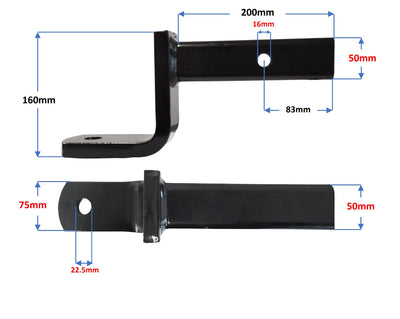

Towball Mount 2500kg 160mm Drop 217mm
- Capacity2500 kg
- Drop160 mm
- Ball to pin217 mm
- Shank7/8"
- Pin to front200 mm
- Pin to rear83 mm
$194.35
In stock

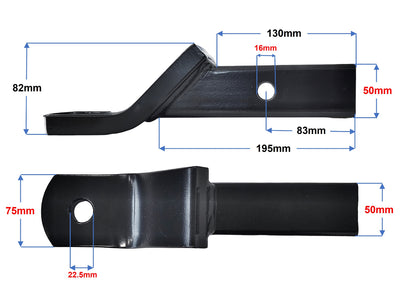

Towball Mount 3500kg 82mm Drop 212mm
- Capacity3500 kg
- Drop82 mm
- Ball to pin212 mm
- Shank7/8"
- Pin to front195 mm
- Pin to rear83 mm
$120.75
In stock

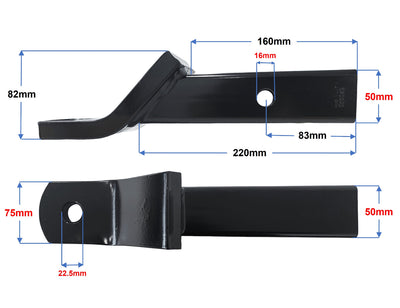

Towball Mount 3500kg 82mm Drop 237mm
- Capacity3500 kg
- Drop82 mm
- Ball to pin237 mm
- Shank7/8"
- Pin to front220 mm
- Pin to rear83 mm
$128.80
In stock

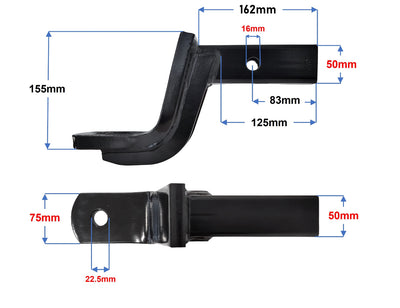

Towball Mount 3500kg 155mm Drop 162mm Shank
- Capacity3500 kg
- Drop155 mm
- Shank7/8"
- Pin to front162 mm
- Pin to rear83 mm
$147.20
In stock
Hayman Reese Trailer Ball Mount - 215x250mm - 2500kg
Adjustable
- Capacity2500 kg
- Dropup to 175 mm
- Ball to pin300 mm
- Shank7/8"
- Pin to front250 mm
- Pin to rear83 mm
$159.85
In stock
Towball Mount 2500kg 98MM DROP 250MM
- Capacity2500 kg
- Drop98 mm
- Ball to pin250 mm
- Shank7/8"
$112.70
In stock
Nothing matches that exact combination.
Clear a filter to widen the search, or send us your tow bar measurements and we will confirm the right mount for you.
