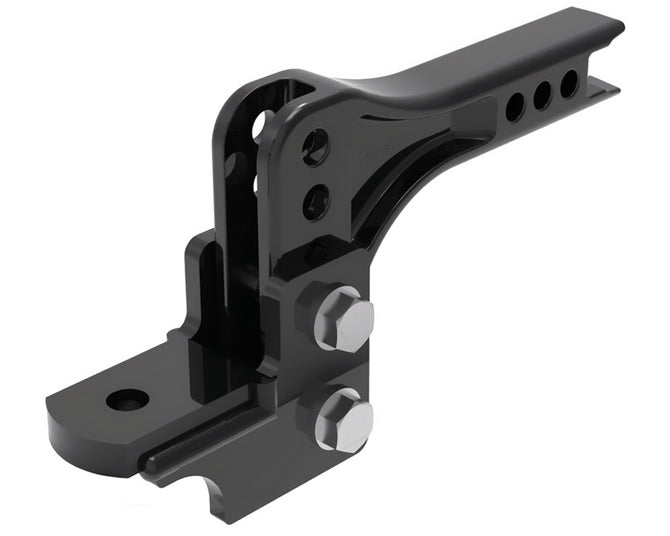

Trailer Ball Mount - Adjustable Head - 304mm Long - 3500kg
$400.20
incl. GST
: Available to Order
Compare every towball mount by shank, capacity and drop
: 70207
Adjustable-head towball mount rated to 3500kg, with a superior adjustment range up to 200mm. The cast shank can be used in the inverted (rise) position. Uses the same 70206-NZ adjustable tongue we also sell separately — pair it with one of our Hayman Reese cast shanks (50150/50151/50152/50153) for a different base drop.
| Spec | Value |
|---|---|
| Rating | 3500kg |
| Drop (position 1) | 19 / 51 / 83 / 114mm |
| Rise (position 2) | 25 / 57 / 89mm (drop 6mm) |
| Shank receiver | 50mm square |
| Shank length | 105mm (last pin to start of flare) |
| Ball to pin | 278 / 303.5 / 328.7mm, depending on position |
| Pin to rear | 108.5 / 83 / 57.8mm, depending on position |
| Tow ball shank diameter | 1" (25mm) |
| Tongue width | 62mm — not suitable for high-rise towballs |
| Part number | 70207 |
Suits all hitches including DO. Not fitted with a 50mm towball. Fitment notes: Ford Ranger — fits to the first hole only. Toyota Hilux — the pin-to-end-of-receiver measurement needs to be 105mm or less.
