Hayman Reese Towball Mount - 3500kg - Adjustable 60-156mm Drop - 30mm Offset Shank
$453.10
incl. GST
: Available to Order
Compare every towball mount by shank, capacity and drop
: 70206-NZ+50151

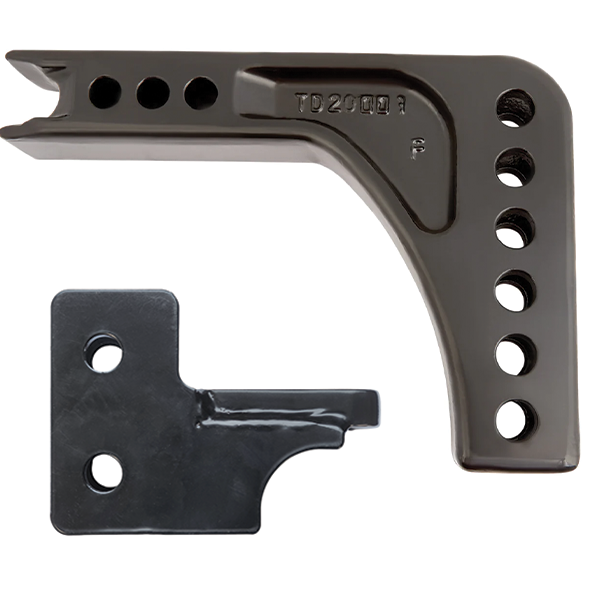

Hayman Reese adjustable towball mount tongue paired with the 30mm offset cast shank — 4 bolt-on drop positions from 60mm to 156mm. Rated to 3500kg, 1" towball shank.
| Spec | Value |
|---|---|
| Rating | 3500kg |
| Drop positions | 60 / 92 / 124 / 156mm (bolt-on head, bolts included) |
| Shank receiver | 50mm square |
| Shank length | 155mm (last pin to start of the flare) |
| Pin to rear | 3 positions — 56 / 82 / 108mm (fits a pre-2023 Ford Ranger up to the first hole only) |
| Towball shank diameter | 1" (25mm) — fits 1" shank towballs and DO-35/45 towpins |
| Tongue width | 62mm — not suitable for high-rise towballs |
| Includes | Bolts, washers and nuts for fixing head to drop shank |
| Included | Value |
|---|---|
| Adjustable towball mount tongue | 1 x 70206-NZ |

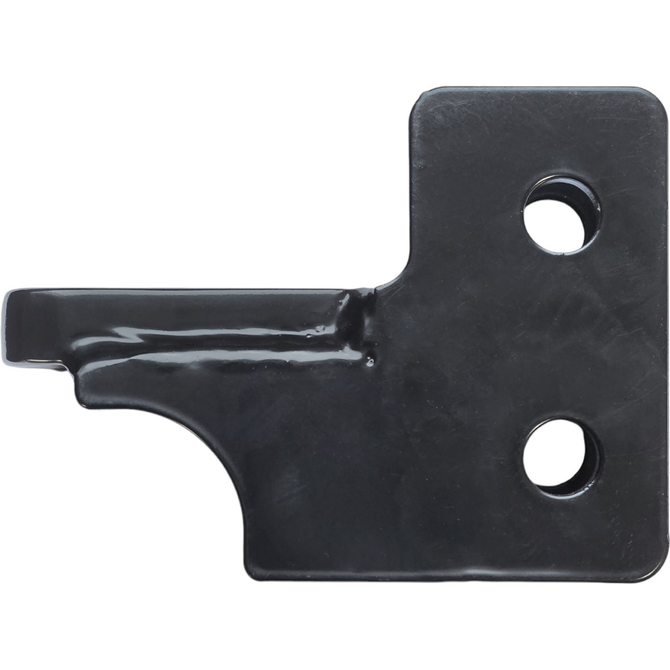

| Cast shank, 30mm drop | 1 x 50151 |
Each component is also available separately, and the tongue can be paired with a different drop shank (50150/50152/50153) for a different base drop.
