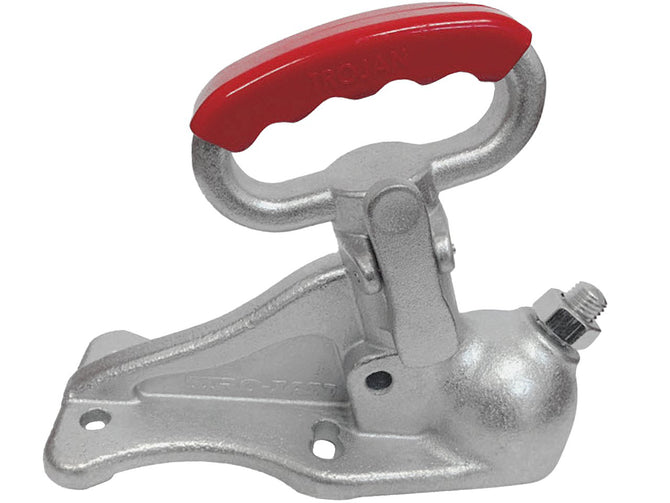

Trojan Coupling - Duofit - Non Braked 2500kg
$102.35
incl. GST
: 3 in stock
: 190064
A Trojan Duofit non-braked coupling rated to 2,500kg. It fits both 1-7/8" and 50mm towballs: lift and rotate the handle to switch sizes. It uses the same mounting as Trojan's TC30 lever coupling.
Specifications
| Brand | Trojan |
|---|---|
| Part number | 190064 (Trojan T190064) |
| Type | Duofit coupling, non-braked |
| Towball size | 50mm and 1-7/8" (switch by rotating the handle) |
| Maximum capacity | 2,500kg |
| Mounting style | TC30 bolt-on (same as Trojan lever coupling) |
| Construction | Cast steel, electro zinc plated, anti-rattle screw, provision for a security padlock |
| Standard | Complies with NZS 5232:1993 in 50mm mode |
Measurements
| Mounting holes | 4 x 10mm |
|---|---|
| Bolt pattern | TC30 pattern, 90mm x 36mm across bolt centres |
Compatibility
- Towball: 50mm or 1-7/8". Make sure the handle is set for the ball you're using before you tow.
- Brakes: unbraked trailers. For braked trailers, see braked couplings.
- Weight: up to 2,500kg.
- Drawbar: suits drawbars drilled to the TC30 90 x 36mm pattern, so it can replace a Trojan TC30 lever coupling.
What's included
- Trojan Duofit non-braked coupling
- Anti-rattle screw
Mounting bolts and the lock are not listed as included. Both are linked below.
Fitting notes
- Mount with four 10mm high-tensile bolts, as Trojan recommends.
- Tighten to Trojan's recommended torque for the bolt grade:
| Bolt size | Grade 8.8 | Grade 10.9 |
|---|---|---|
| M10 | 60Nm (45ft/lb) | 80Nm (60ft/lb) |
